1775 Impact XS

SERIOUS FISHING BOAT

Lund site-operations icons

SS

Sport Boat icon

SPORT

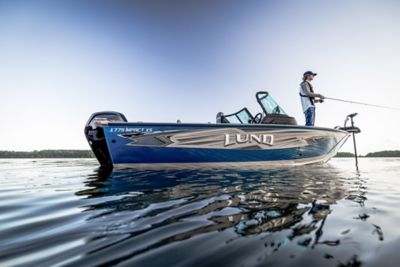

1775 Impact XS

1775 Impact XS

Starting At $49,388*

BUILD & PRICE

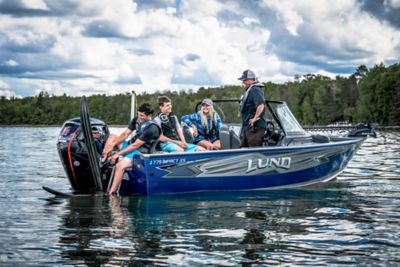

The 1775 Impact XS is a perfect boat for anglers with families. This versatile family fishing boat is perfect for the fish and ski family.

SPECIFICATIONS

17' 10" Length Overall
115 HP Maximum Horsepower
6 Persons Capacity
96" Beam

SPECIFICATIONS

17' 10" Length Overall
115 HP Maximum Horsepower
6 Persons Capacity
96" Beam

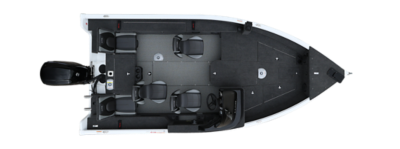

Layouts

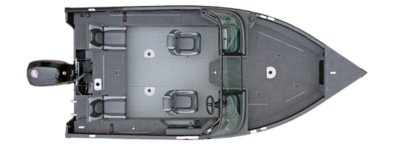

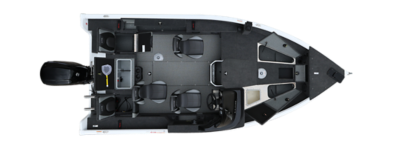

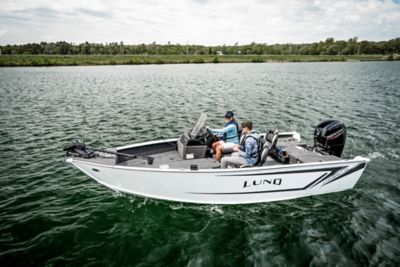

Side-Steering (single console) Model.

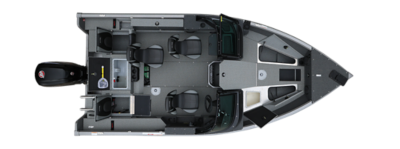

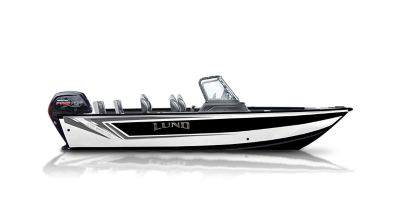

This boat is available in a full windshield (Sport).

Lund Boat's Impact XS

1775 IMPACT XS

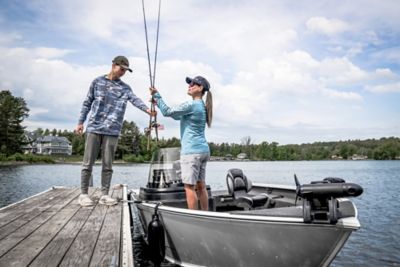

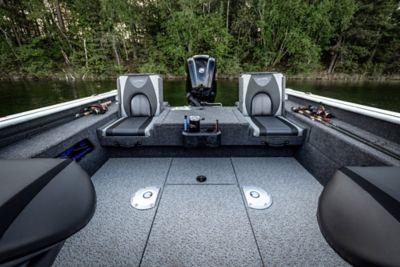

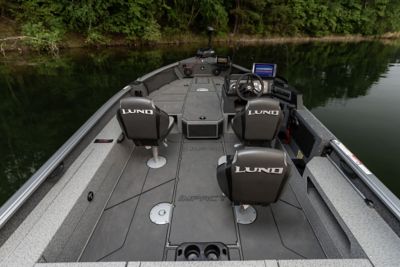

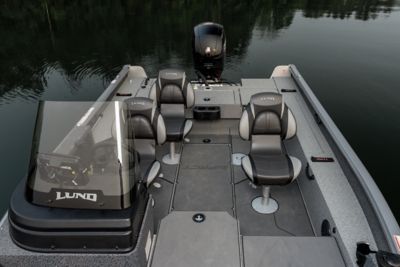

The 1775 Lund Impact XS SS (Side Console) is one of our most popular 17-foot plus walleye fishing boat models for a reason. This family fishing boat features include a center rod locker two livewells large casting decks and even a ski pylon options for family fun. There's even a boarding ladder and aft jump seats to accommodate the entire family and friends.

FULL SPECS

Length Overall

17' 10"

Maximum Horsepower

115 HP

Persons Capacity

6

Beam

96"

Transom Height

25"

Chine Width

81.5"

Cockpit Depth

23"

Boat/Motor/Trailer Length

20' 2"

Boat/Trailer Width

8' 6"

Max Rod Storage Length

7' 8"

Bottom Thickness

0.080"

Double-Plated Bow Thickness

0.160"

Freeboard Thickness

0.063"

Hull Design

IPS

Fuel Capacity

30 Gal

Maximum Weight Capacity

1700 lbs

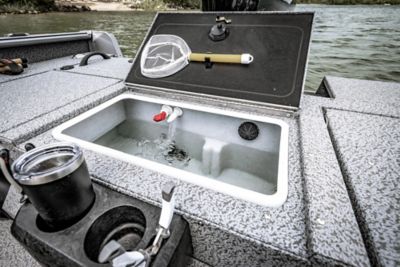

Front Livewell Volume

11 Gal / 27" Long

Rear Livewell Volume

24 Gal / 38" Long

Max MPH

36-43 MPH

ADDITIONAL FEATURES

1775 Impact XS

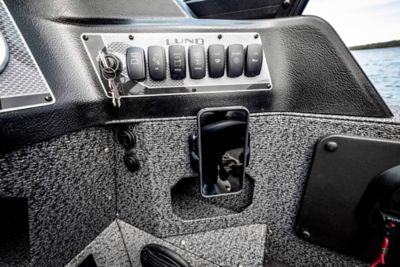

Consoles / Instrumentation / Lighting

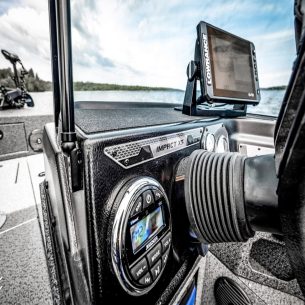

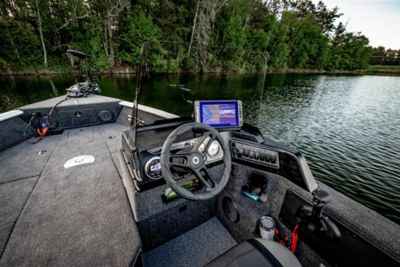

Full Lighted Instrumentation (Tach, Fuel, Trim) Flush Mount Horn Interior LED Lighting Kicker Stereo w/4 Speakers Mercury Prerig Navigational Lighting No Feedback Steering w/Tilt Backlit Switches Dual USB Port (A & C) Cell Phone Holder Standard Battery Switch

Other Exterior Features

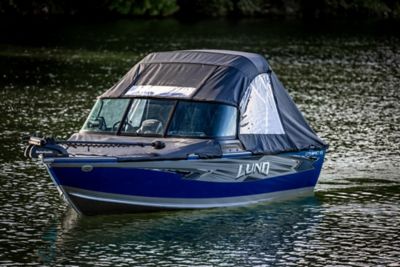

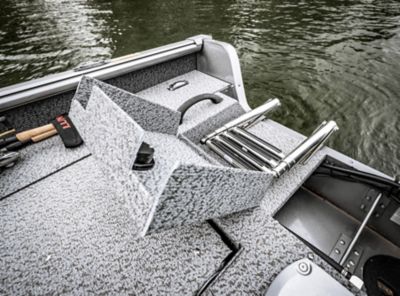

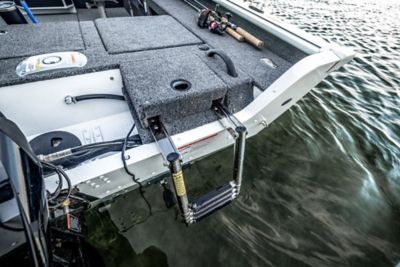

4-Step Folding Pan Mounted Boarding Ladder Aluminum Corner Castings Bow & Stern Eyes Composite Transom Factory Engine Rigging Standard Level Flotation Compliance Stainless Steel Flip-Down Cleats Transhield Cover Twin-Plated Bottom (Bow to Amidship) Hull Drain Plug

Other Interior Features

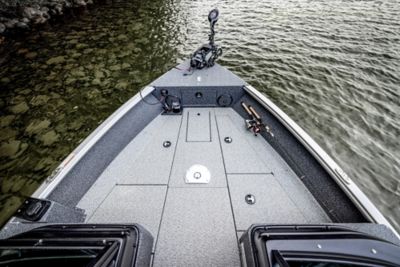

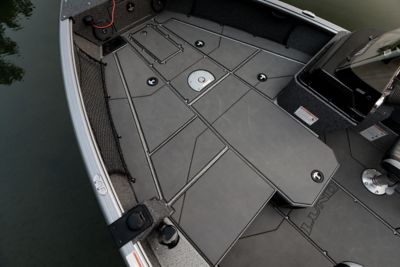

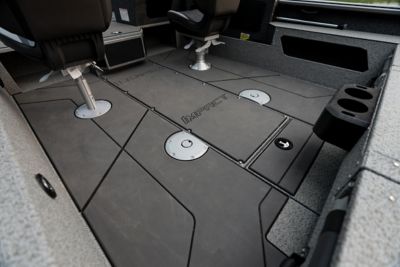

Aft Casting Platform Battery Holder (3) Bilge Pump (1 pump Auto/Manual) Bow Casting Platform Bow Deck Mounting Pad Bow Trolling Motor Harness w/Plug Drink Holders Dual Trak Gunwale Port Splash Pan Insert Self-Draining Splash Pan Ski Tow Base (Ski Pole Not Included) Trolling Motor Foot Pedal Tray w/Removable Filler Wood-Free Construction

Seats/Pedestals

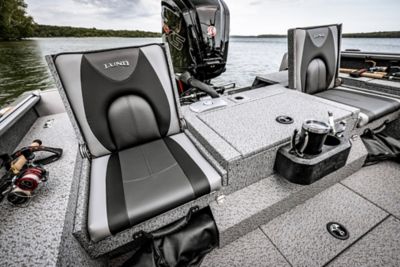

Aft Integrated Jump Seats Seat Bases (6) Solid Fixed Mainstay (1) Solid Removable Pedestal (1) ProRide Seats (3) Driver's Seat Slider

SHORELAND'R TRAILER

(4)2x6 Bunks / Lundguard Frame LUV23SELWSS9-16 Swing Tongue / E-Coat Painted Wheels w/Radial Tires Tongue Jack / LED Lights / Retractable Tie Downs Aluminum Rims Spare Tire

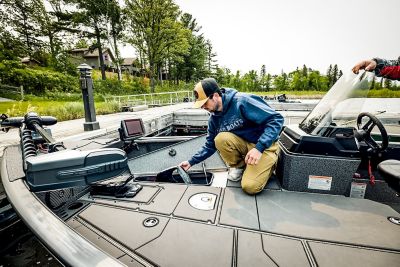

Storage

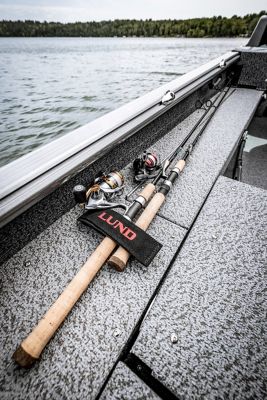

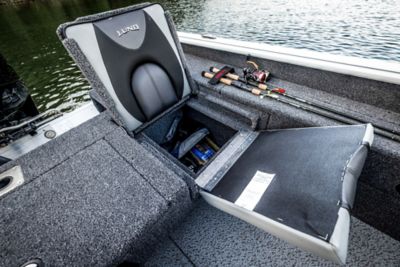

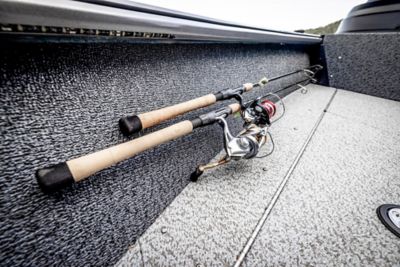

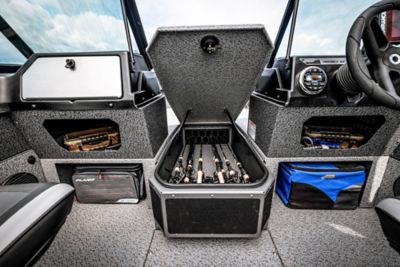

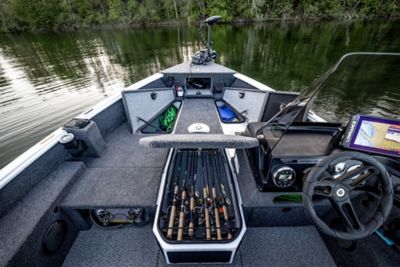

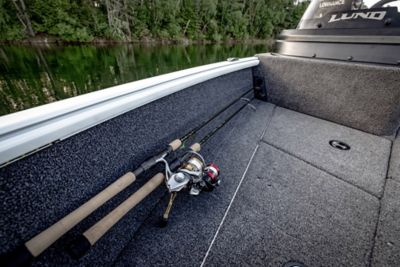

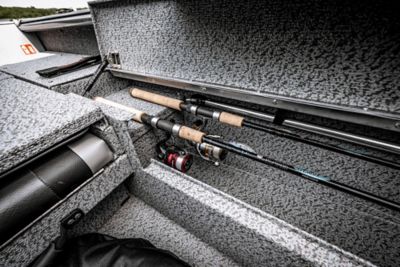

Battery Storage Compartments Lockable Center Bow Rod Storage w/Tubes Lockable Port Rod Locker w/2 Tubes Lockable Storage Storage Compartments Bow On-the-Go Rod Storage

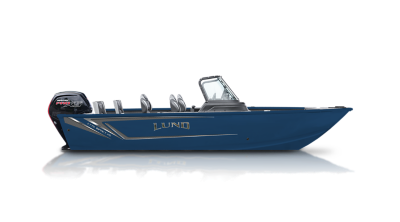

AVAILABLE COLORS
