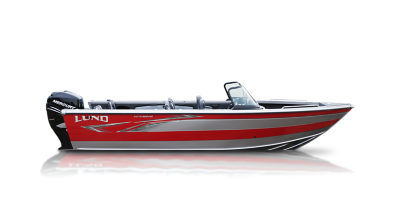

The Lund 2275 Baron is the perfect big water aluminum salmon trout or walleye fishing boat. At nearly 23 feet long and a 400 max horsepower rating the legendary 2275 Lund Baron is loaded with luxury. Loaded with storage seating and fishing features the Baron is perfect for large lakes loaded with salmon or lake trout. The Lund Baron has long been considered the premium aluminum trolling salmon fishing boat in the industry.

Length 22' 9"
Max HP Capacity 400 HP
Beam Width 102"
Max Rod Storage Length 10'
Max Persons 12
Fuel Tank Size 70 Gal

Max Weight Capacity 2950 lbs
Standard Boat Weight 2450 lbs
Rear Livewell Capacity/Length 24 Gal / 38" Long
Front Livewell Capacity/Length 9 Gal / 25" Long
Cockpit Depth 30.5"
Chine Width 89"
Max MPH 52-61 MPH
Transom Height 25"

Double-Plated Bow Thickness 0.225"
Bottom Thickness 0.125"
Freeboard Thickness 0.080"
Hull Design IPS2

Boat/Motor/Trailer Length 23' 10"
Boat/Trailer Width 8' 6"
Boat/Motor/Trailer Height 7' 8"
Boat/Motor/Trailer Towing Weight 4343 lbs

2275 Baron Full Enclosure Rear

Baron Aft Jump Seats Closed

Baron Aft Jump Seats Open

Baron Port Rod Locker Storage Compartment

Baron Port Rod Storage Compartment Closed

Baron Port Rod Storage Compartment

Baron Starboard Storage Compartment Closed

Baron Starboard Storage Compartment Open

Optional Suspension Seat - Beige

Optional Suspension Seat - Grey

2275 Baron Aft Platform Closed

2275 Baron Aft Platform Open

2275 Baron Bow Step Storage Closed

2275 Baron Bow Step Storage Open

2275 Baron Bow Storage Compartments Closed

2275 Baron Bow Storage Compartments Open

2275 Baron Command Console Dash

2275 Baron Command Console

2275 Baron Full Enclosure Front

2275 Baron In-Floor Rod Storage

2275 Baron Port Console Storage Compartments Open

2275 Baron Port Console

2275 Baron Sport Top Hider Open

Baron Stainless Steel Cup and Tool Holder

Baron Top Hider Closed

Baron Top Hider Open

2275 Baron Family

2275 Baron Run

2275 Baron Running

2275 Baron Troll

2275 Baron Trolling

2275 Baron

Lund 2275 Baron Run

Lund 2275 Baron Running
